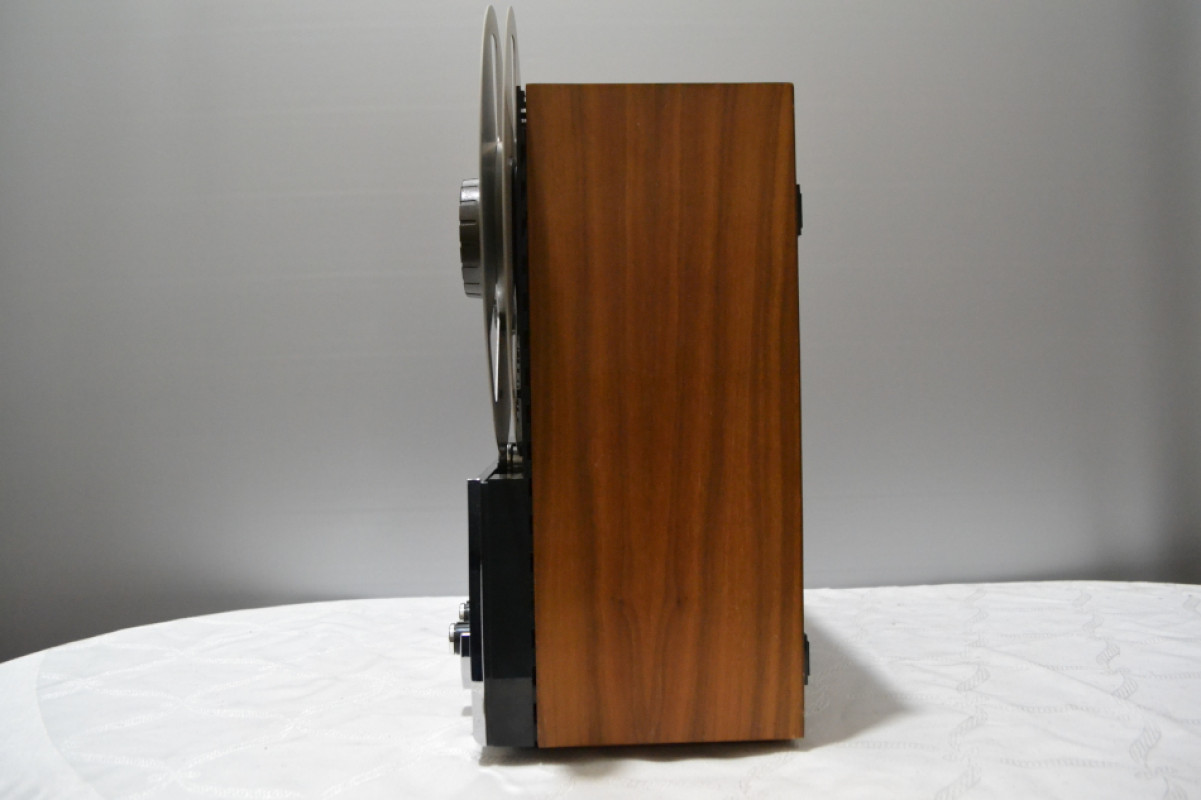

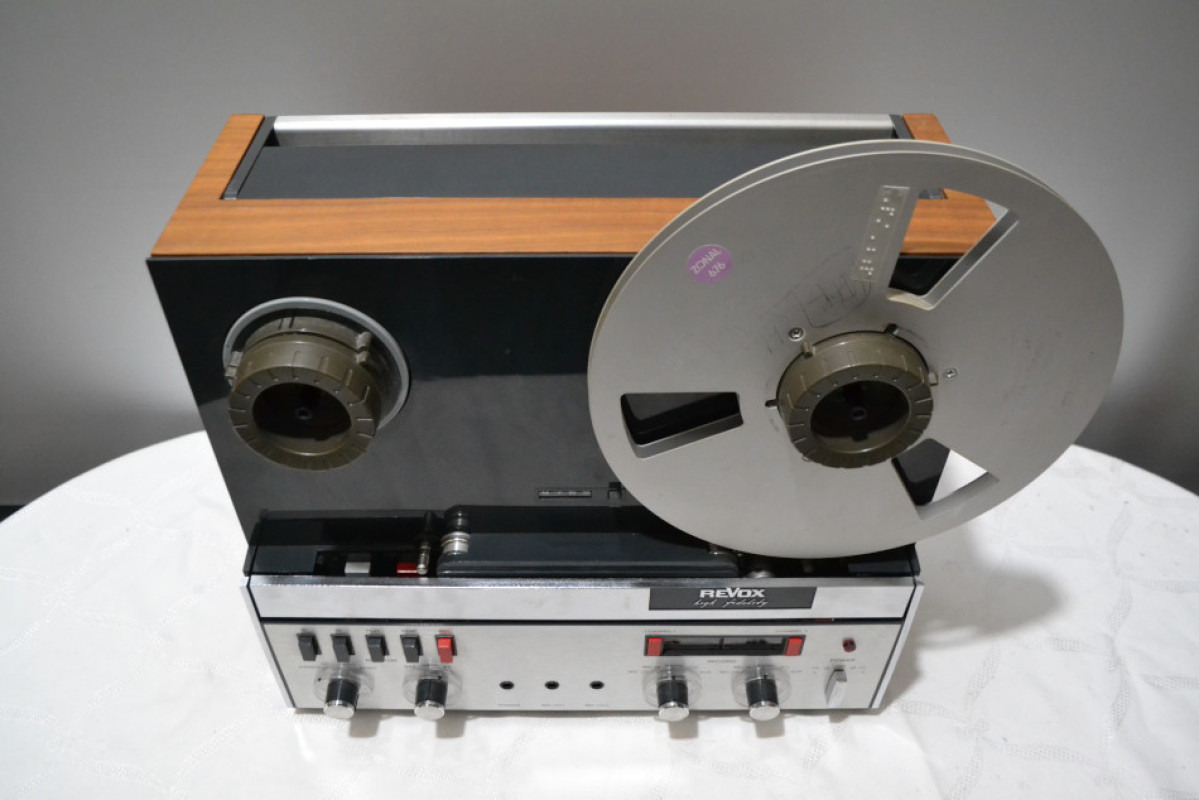

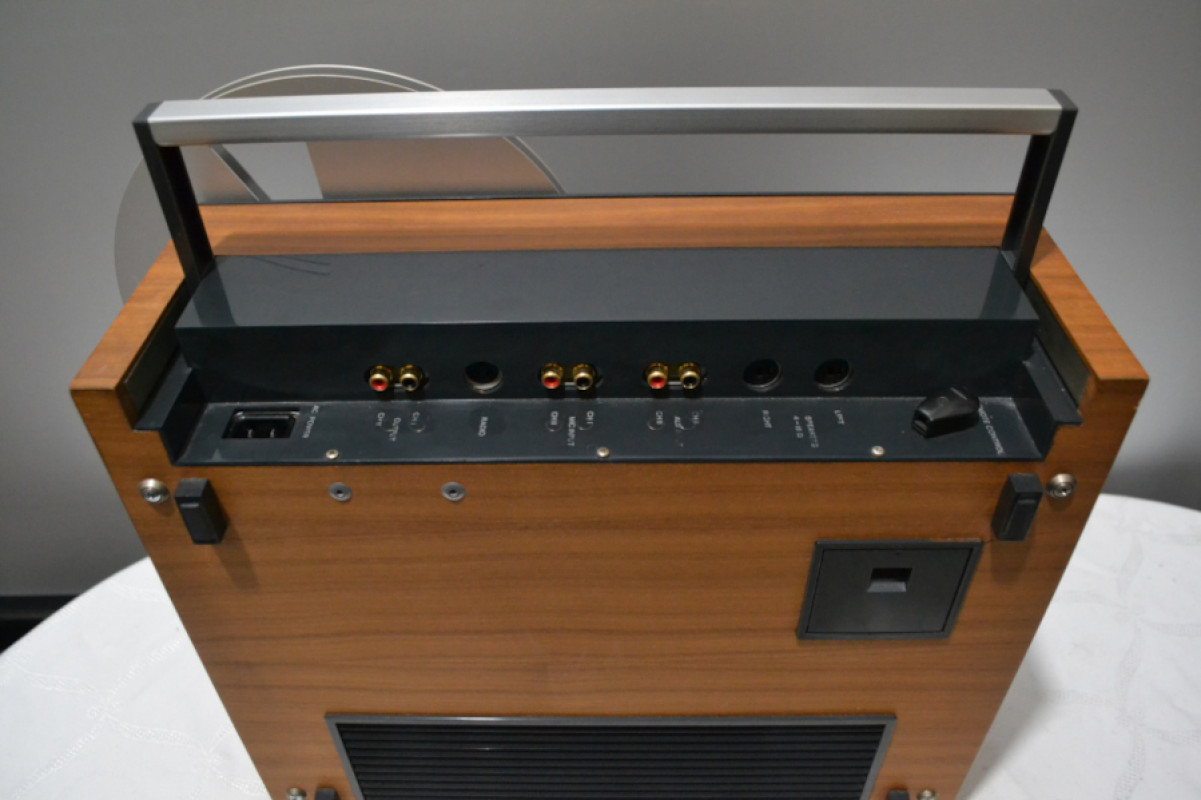

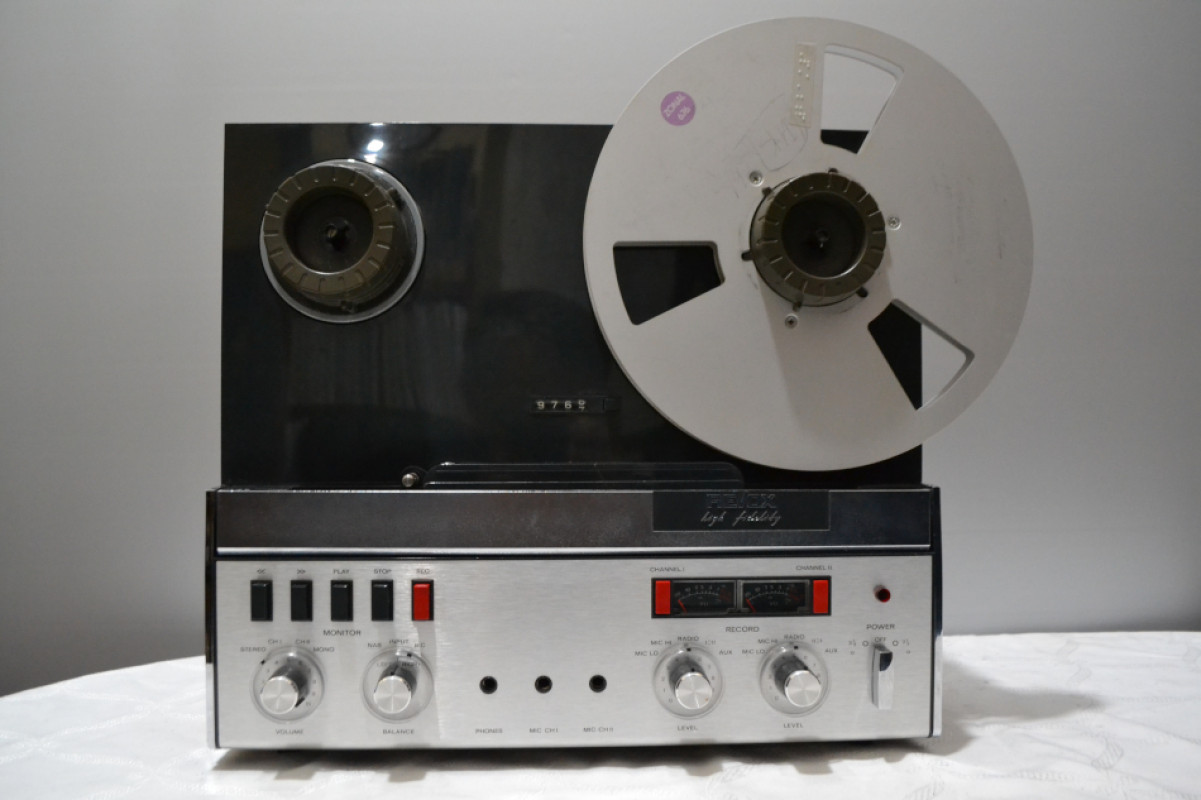

It has 2 tracks for recording and playback in stereo mode (2-track professional tape recorder). Tape speed 19 and 38 cm/sec. The body of the tape recorder is veneered and looks really cool. All functions are in order. The tape recorder is configured to work with BASF magnetic tape (Emtec PER528 or RMG). The head unit has been demagnetized and all factory settings have been restored. Diagnostics and service were carried out in a specialized workshop in Germany. The capacitors in the power supply unit and the sound path have been replaced with higher quality ones. Calibration was carried out using branded test magnetic tapes. The equipment has no defects, 100% working condition! The tape recorder is very clean inside and has no serious signs of wear. It even records on old BASF, without noticeable loss of sound quality.
Professional design concept that successfully combines the advantages of a robustly constructed tape transport mechanism with the advantages of advanced electronic circuitry. 3-motor transport mechanism with electric motor and servo brakes with electric brakes.
Mechanical features
Tape transport - Three Studer motors with electronic control. Electronic speed change. Solenoid controlled via 3 relays.
Tape speed 19 and 38 cm/sec ± 0.2%
Wow and Flutter Max. ± 0.04% at 38 cm/sec
Tape slip Less than 0.2%
Fast forward/rewind time for 1800′ is 92 seconds
Three tape heads (eraser.recorder and play) with patented "true radius" design for excellent signal to noise ratio and head protection.
Horizontal or vertical operating position
Technical specifications
Individual stereo recording and playback heads with separate preamplifiers, as well as separate recording and playback circuits allow for full monitoring of the input and output signals.
NAB Standard equalization for both recording and playback at all speeds.
IEC standard is switched only during playback.
Frequency response of the recording-playback path
speed 38 cm/sec – 30 Hz – 23k Hz ± 1.5 dB
19 cm/sec – 30 Hz – 20k Hz + 2 / – 3 dB
Signal / noise
2 tracks:
38 cm/sec – better than 66 dB
19 cm/sec – better than 66 dB
Output voltage: max. 2.5 V at 600 Ohms
Radio: max. 1.2 V at 2.5 kΩ
Phones: 200 – 600 Ω
Semiconductors 54 Transistors; 32 diodes, 4 silicon rectifiers, 1 CdS element
Output amplifiers. 2 x 8 W continuous RMS power, 2 x 10 W music power according to IHFM, 4-16 Ω, less than 1% distortion.
Power supply with electronic stabilization.
Mains voltage 110, 130, 150, 220, 240, 250 Volts / 50 – 60 Hz
Power consumption 70 to 100 W
Dimensions
16 1/4 in. (W) x 14 1/8 in. (H) x 8 1/2 in. (D)
