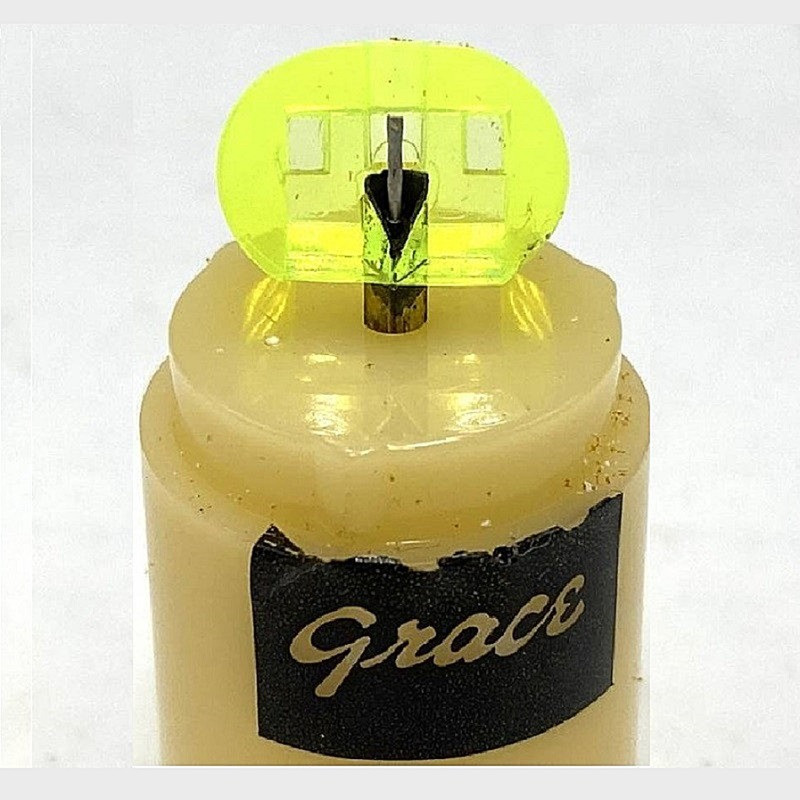

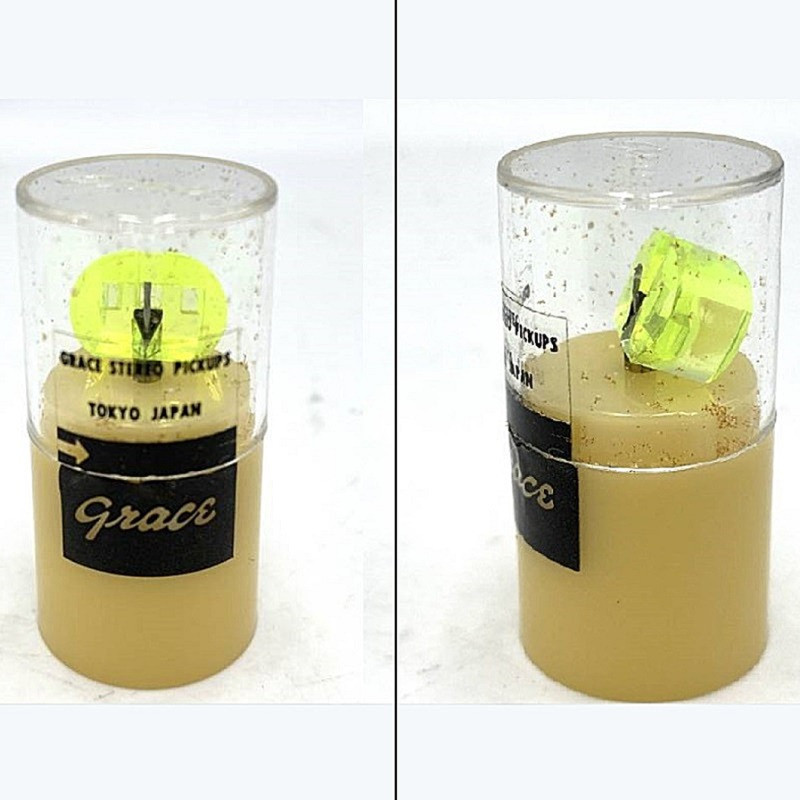

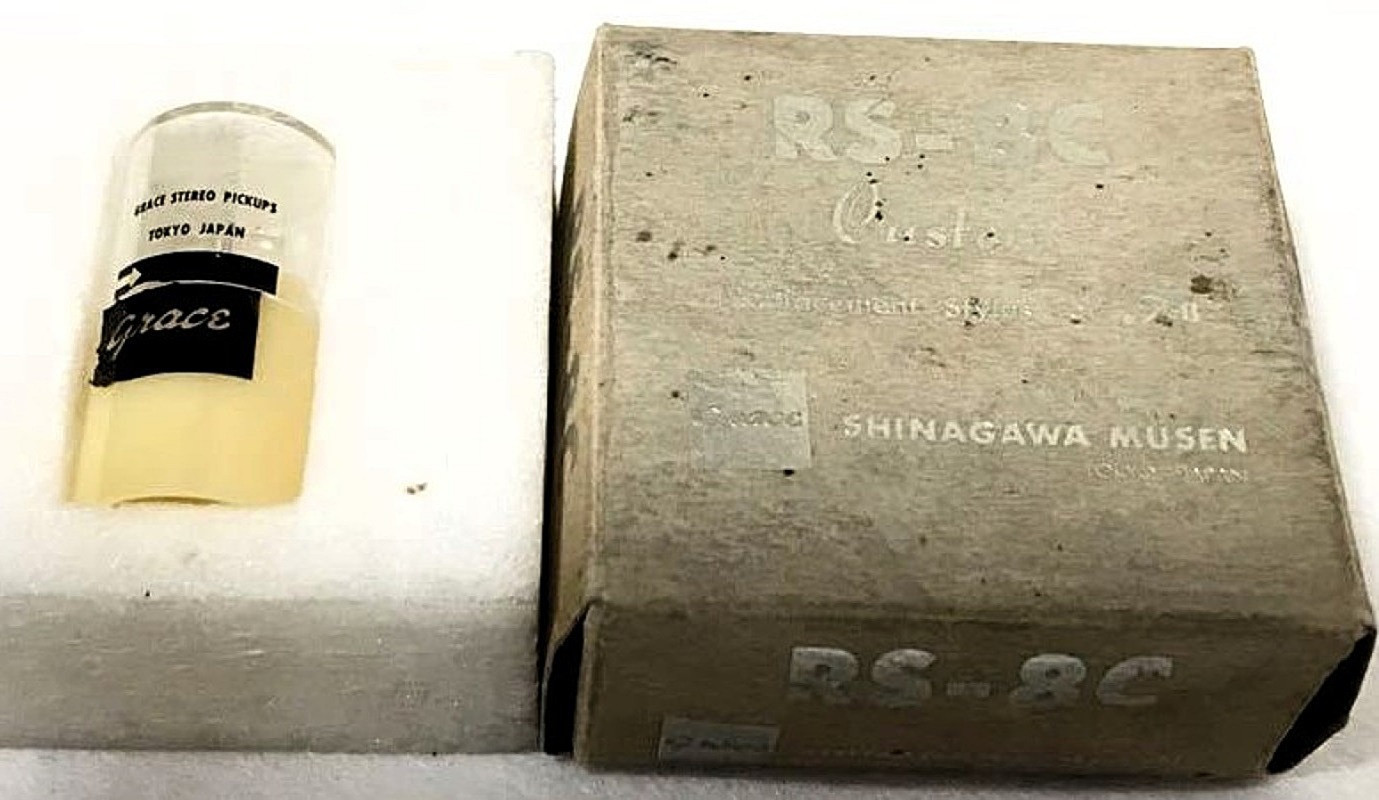

GRACE RS-8E Replacement Stylus for GRACE F-8E Moving Magnet Cartridge
Tested and confirmed working with a compatible cartridge.
Specifications
- Type: High output Moving Magnet Stereo
- Playback frequency range: 10 ~ 45,000 Hz
- Output voltage: 3.5 mV (5 cm/sec. 45, 1KHz)
- Channel balance: 0.5 (within dB, 1KHz)
- Stylus: Type E
- Stylus pressure range: 1.0-2.5gm
- Standard pressure: 1.2gm
- Compliance: 20 × 10-6 cm/dyne
