GRACE F-8 series cartridges are designed for high compliance, and therefore for the best performance a lightweight tonearm is recommended.
The cartridges are enclosed in a super permalloy case to prevent pick-up of unwanted noise and static.
Feature :
- Flat frequency response for the entire audio range
- Response beyond 40 KHz, suitable for all CD-4 records
- Extremely small magnet made from a rare earth cobalt formulation for each stylus
- Extremely light but strong cantilever, made from a special low mass alloy for excellent transient response
- One point support of the stylus assembly which guarantees ideal reproduction in accordance with laws of motion
- Excellent channel balance and low cross-talk through unique matrical-flux magnetic circuit of the Grace cartridges
- Universal acceptance by broadcasters and record manufacturers

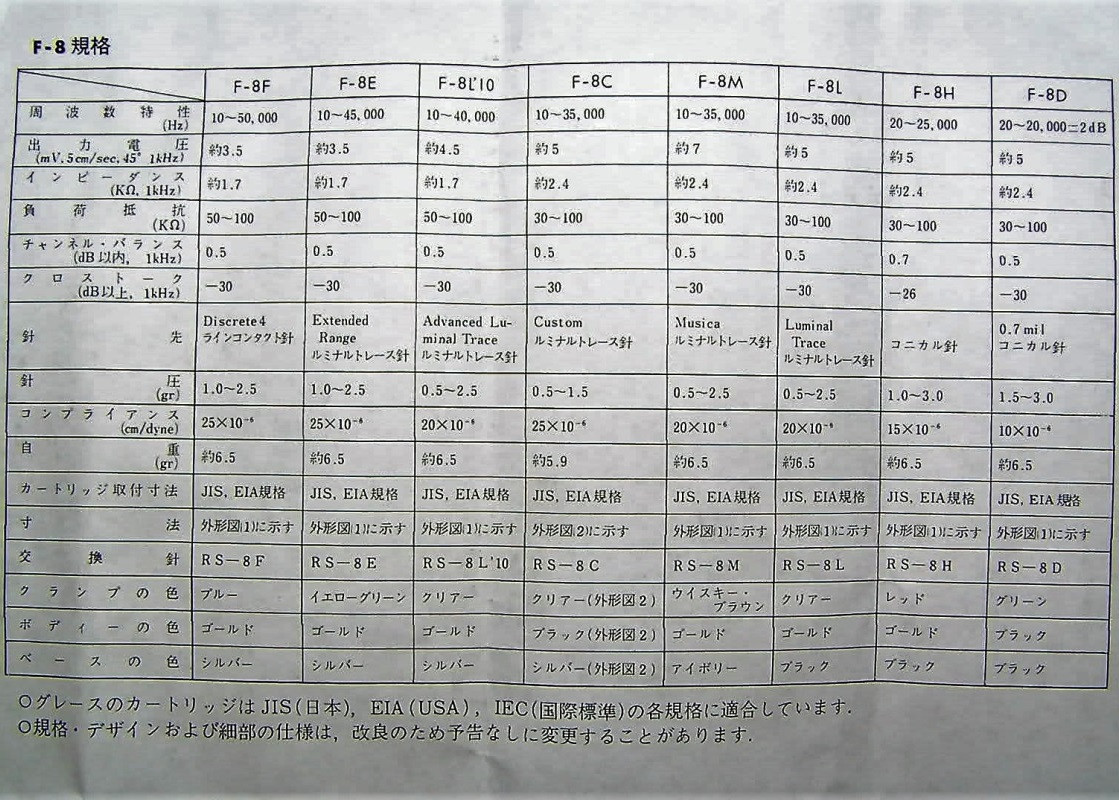

Advanced Luminal Trace Specifications
- Type: High output Moving Magnet Stereo
- Playback frequency range: 10 ~ 40,000 Hz
- Output voltage: 5.0 mV (5 cm/sec. 45, 1KHz)
- Impedence: app. 1.7 (KΩ, 1KHz)
- Resistance: 30-100 (KΩ)
- Channel balance: 0.5 (within dB, 1KHz)
- Effective moving mass: 0.4 mg
- Cross talk: -30 (dB, 1KHz)
- Stylus pressure range: 0.5-2.5gm
- Standard pressure: 1.2gm
- Compliance: 20 × 10-6 cm/dyne
- Weight: app. 6gm
- Specifications: JIS, EIA
- Replacement stylus: RS-8 NEW
