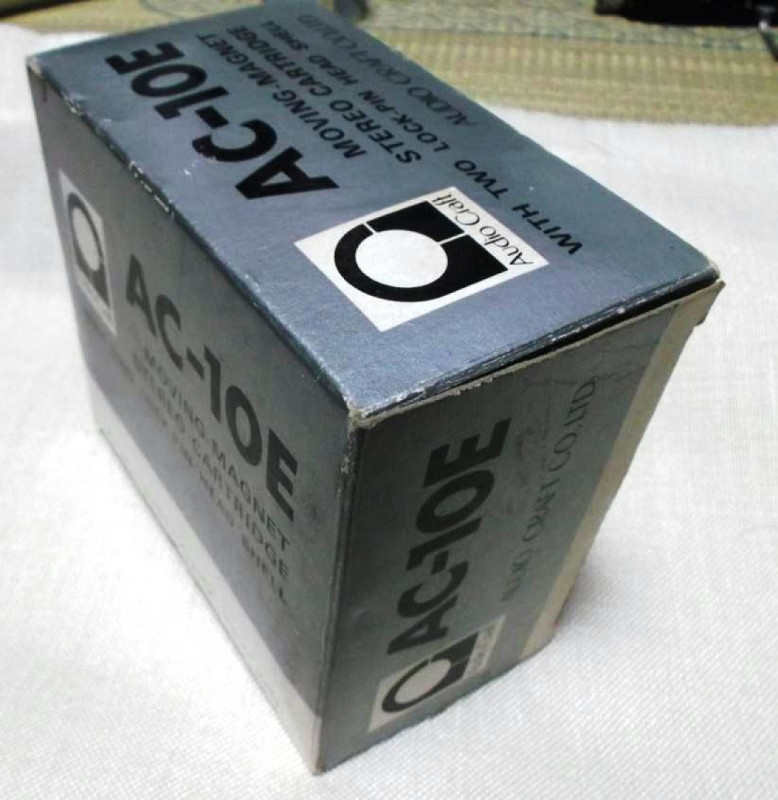

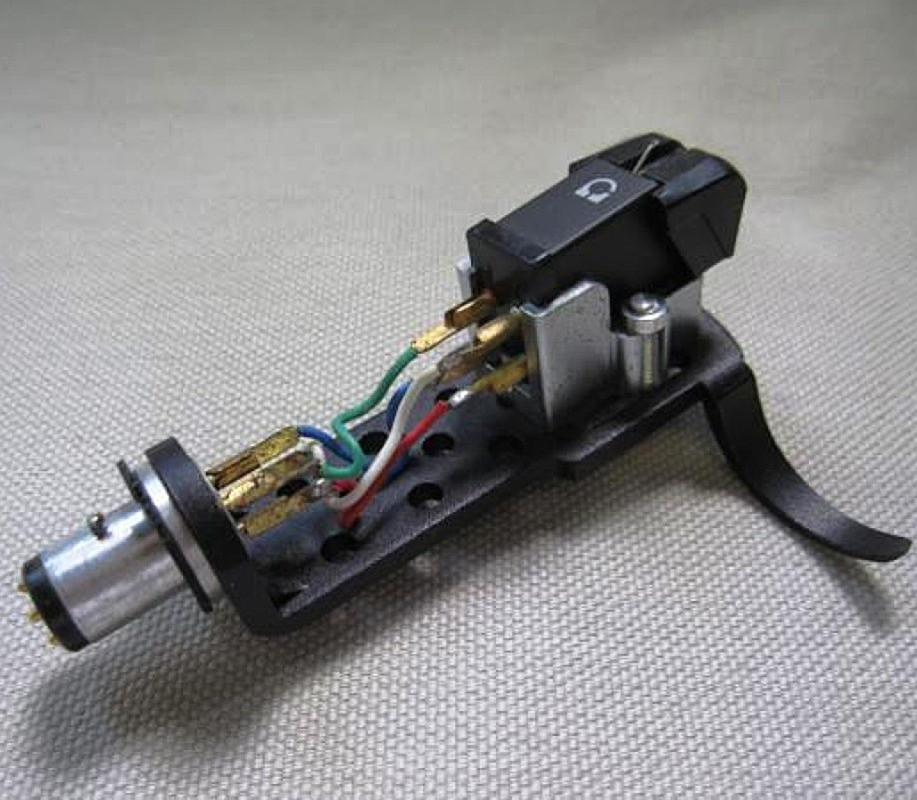

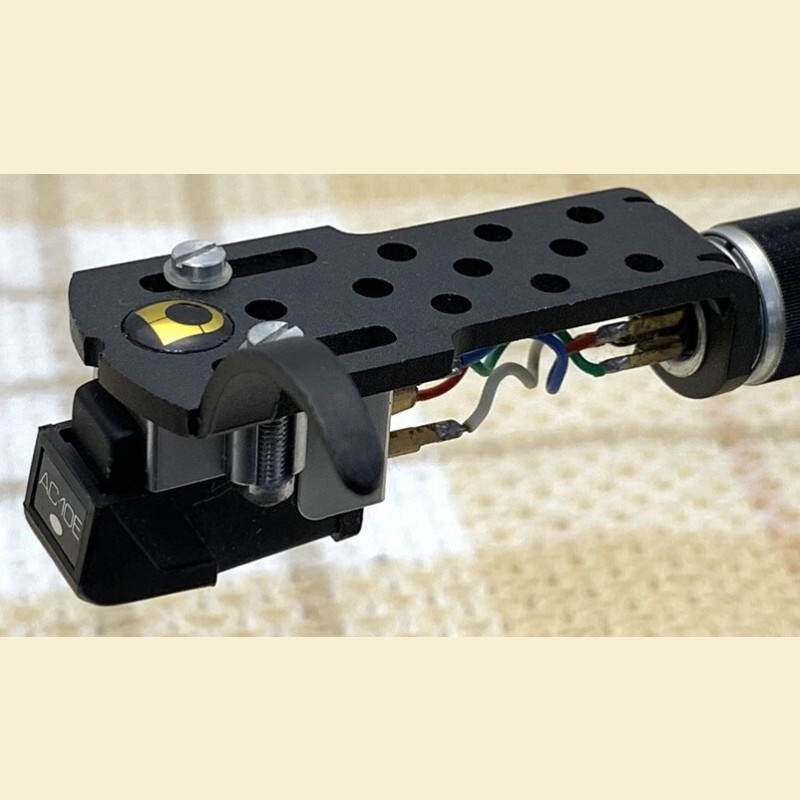

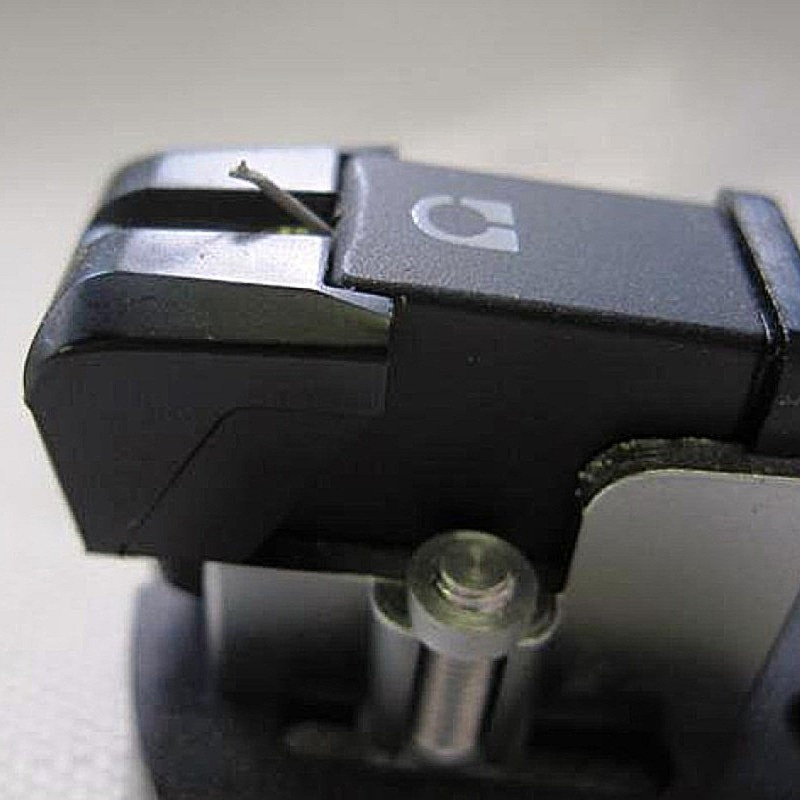

AudioCraft AC-10E - MM cartridge with a soft and delicate sound from the cult manufacturer of analog devices in the original packaging with shell.
A rare, desirable and wonderful thing in the Audio system.
Specifications
power generation method MM type
output voltage 3mV (5cm / sec 1kHz)
needle pressure 1.5 ~ 1.8g
reproduction frequency band 10-25,000Hz
Channel separation 28dB / 1kHz
compliance 25 × 10-6cm / dyne (static) 12 × 10-6cm / dyne (dynamic)
load resistance 47 ~ 100kΩ
needle tip 0.3 × 0.8mil
own weight 5.7 g of
