30 hours of operation (performance check and testing)
5.1 channel surround sound with support for high-definition audio.
Built-in AM / FM tuner.
5.1 channel surround sound with support for high-definition audio;
Built-in AM / FM tuner.
Specifications
Output power per channel: 100 W;
Impedance at output power: 6 ohms;
Number of channels: 5;
AM / FM tuner with RDS;
Number of tuner presets: 30;
HD audio formats: Dolby TrueHD, DTS-HD Master Audio;
Audio return channel;
Remote control type: SR remote control.
surround sound
Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby True HD, DTS, DTS-ES, DTS Neo: 6, DTS 96/24, DTS-Express, DTS-HD High Resolution Audio, DTS-HD Master Audio, 9 + 1 headphone surround modes.
Automatic level control (2 channels);
Automatic surround sound;
Dynamic range control;
Headphone surround sound;
Front Stage Surround Advance;
Tone compensation;
Night listening modes;
Phase adjustment;
Audio delay (LipSync);
Enhanced sound processing (2 channels);
Stream Direct mode.
Video
Deep Colour, 3D playback, x.v.Colour.
Output power
Output power per channel: 100 W;
Conditions 1 kHz, 1% THD, 6 ?;
Rated output power: 100 W per channel;
Mains requirements: AC 220 – 230 V, 50/60 Hz;
Power consumption (operation / standby) 180 W / 0.45 W;
Automatic power off.
Amplifier design
Digital signal processor: Texas Instruments Aureus TMS320DA788;
Digital-to-analog converter: 192 kHz / 24-bit;
Analog-to-digital converter: 192 kHz / 24-bit.

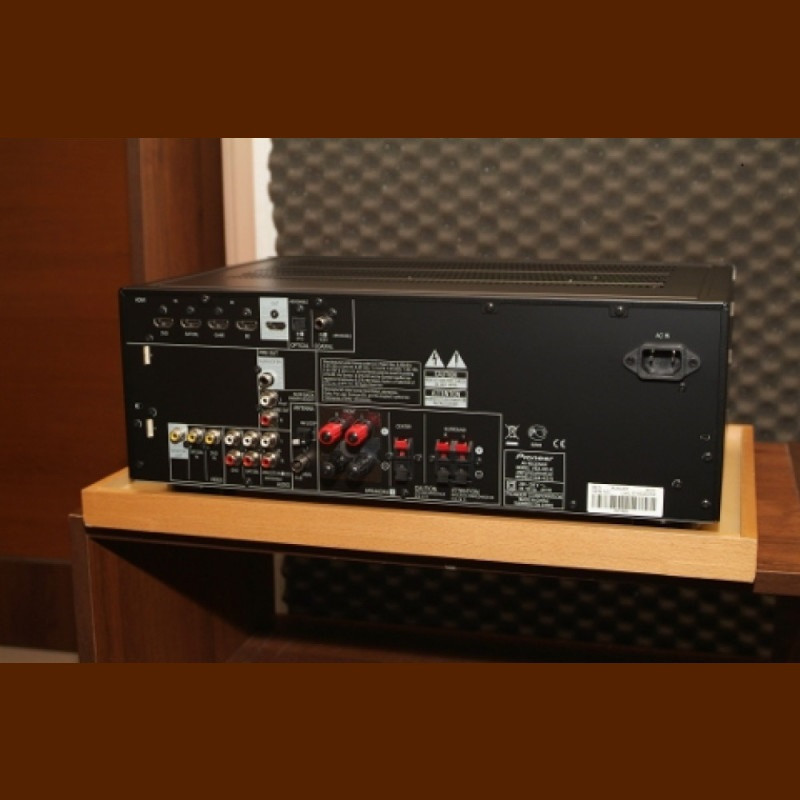

Interfaces
Inputs
4 x HDMI;
1 x S / PDIF coaxial;
1 x S / PDIF optical;
2 x Composite Video;
Outputs
1 x HDMI;
1 x Composite Video;
1 x Rec (record);
2 x outputs to an external amplifier (subwoofer, surround, rear, front).
Dimensions: 435 x 168 x 362.5 mm.
Weight: 7.6 kg.
